Electronic Measure Batch Weighing Controller , Digital Display System And Indicators

Name: Electronic Measure Batch Weighing Controller Digital Display System And Indicators
Brand: Supmeter
Price: 1 USD

Brand Name : Supmeter

Model Number : BST100-B21

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per month

Delivery Time : 2-20 working days

Packaging Details : 1pcs/box

Power Supply : AC220V

DI : 3

DO : 4

PO : 1

AO : 2

AI : 1

Contact Now

Belt Weighfeeder Controller For Belt Scale With Ration Flow Feeding Dust-proof

Main Features:

Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
EMC design with high anti-jamming capability, suitable for industrial environment.
32-bit ARM CPU with 72MHz & higher arithmetic speed.
8+4+4 Red LED digital tubes for English character and digit display.
Optional English keypad, Simplified Chinese keypad and Complex Chinese keypad.
Menu&Shortcut mode operation with key tone.
24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
Broad-range speed pulse input circuit.
Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

Max. Connection Quantity: 8 Loadcells (350Ω).
Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.

One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
Quick and steady PID ration feeding control.
3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].
The feeder and belt weigher can be started and stopped by DI&DO signal.
1 ‘Totalized Weight High-speed Pulse’ output [PO].
2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
Weight Records per shift/day/month of a year can be queried and printed.

With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Electronic Measure Batch Weighing Controller , Digital Display System And Indicators

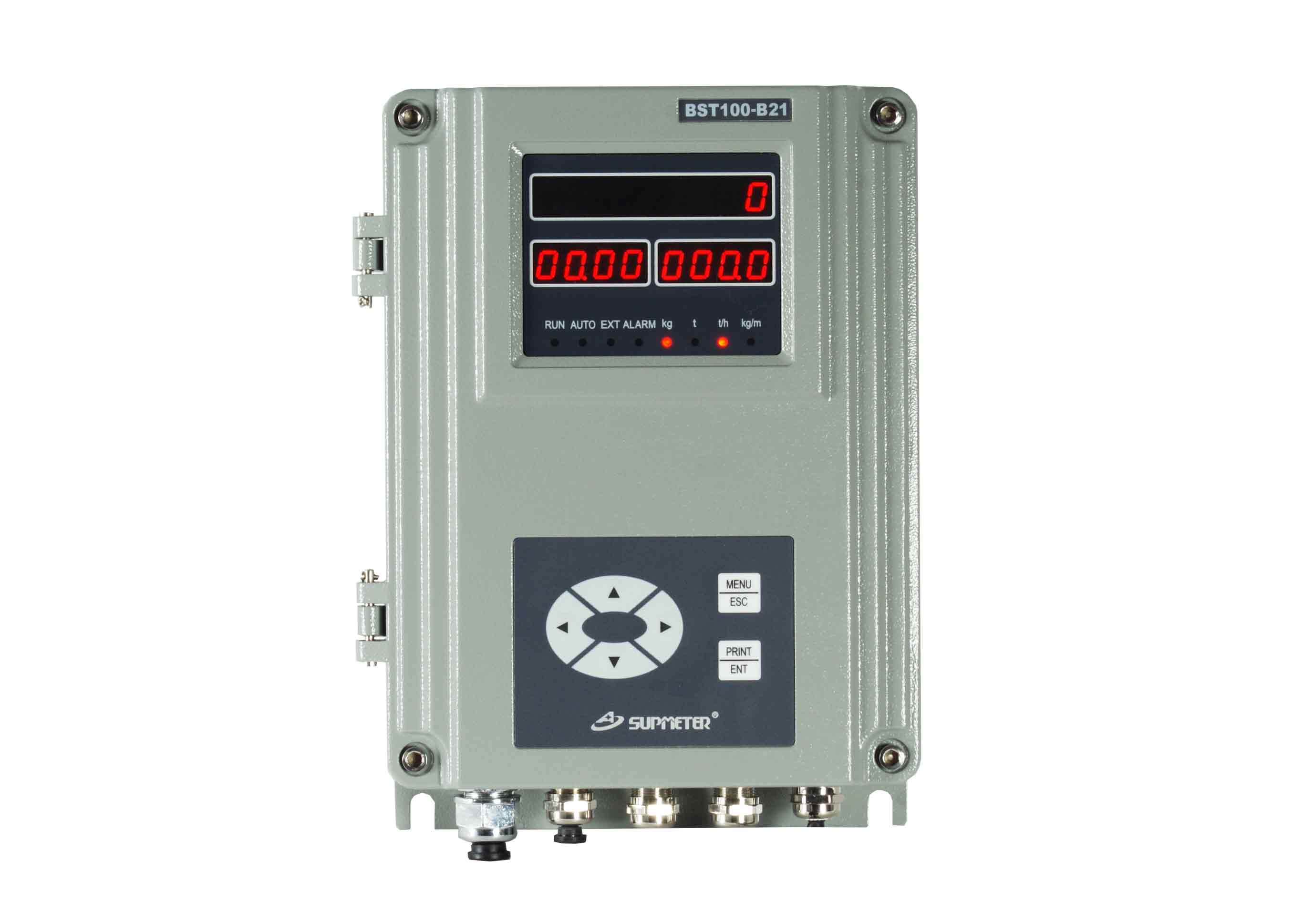

Model Wall-mounting Operation Interface

Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name	Description
【MENU】【ESC】	Enter Main Menu. Exit.
【ENT】	Enter. Save.
【◄】	Cursor shifts left.
【►】	Cursor shifts right.
【▲】	Cursor shifts up. Display the previous interface or option. Digit input: +1.
【▼】	Cursor shifts down. Display the next interface or option. Digit input: -1.
Quick Operation
【MENU】* (【LOCK】)	Key-locking. Key-unlocking.
【◄】 (【ADJ+】)	Control Current +1mA.
【►】 (【ADJ-】)	Control Current -1mA.
【◄】* (【AUTO】)	‘Manual/Auto’ Control Mode Selection.
【►】* (【EXT】)	‘Internal/External’ Flow Set Mode Selection.
【PRINT】 (【ENT】)	Print.

State Indication

LED Lamp	Description	Note
[RUN]	ON: Weighing state. OFF: Stopping state.
[AUTO]	Feeding control mode: ON: Auto [PID]. OFF: Manual.
[EXT]	Flow Set Mode: ON: External [AI: 4~20mA]. OFF: Internal.
[ALARM]	Alarm.
[kg]	Weight Display Unit: kg.	Display Panel A ([P107] Internal Scale Unit=kg)
[t]	Weight Display Unit: t.
[t/h]	Flow Display Unit ON: t/h. OFF: kg/min or kg/h.
[kg/m]	Load Display Unit: kg/m.
[g]	Weight Display Unit: g.	Display Panel B ([P107] Internal Scale Unit=g)
[kg]	Weight Display Unit: kg.
[kg/h]	Flow Display Unit ON: kg/h. OFF: g/min or g/h.
[g/m]	Load Display Unit: g/m.

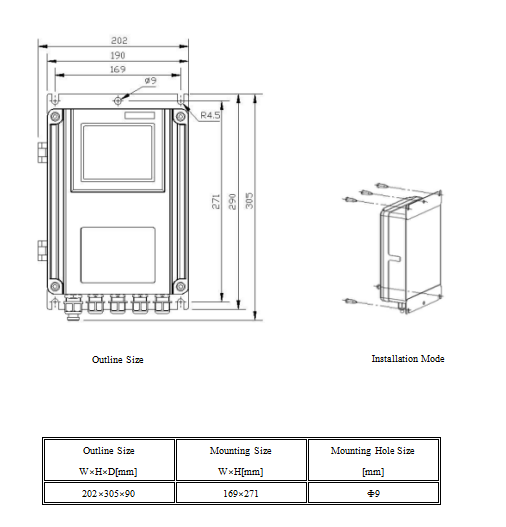

Model Wall-mounting Installation

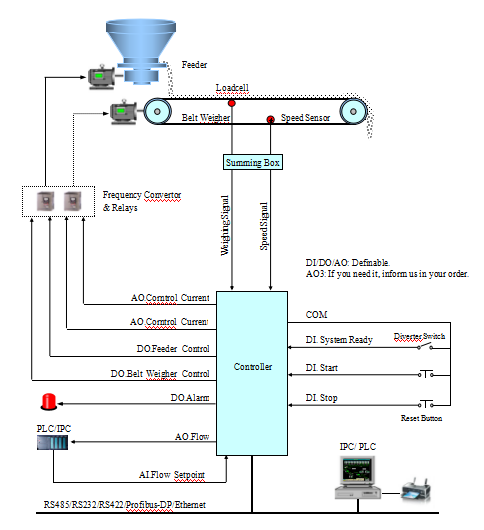

Ration Flow Auto-Feeding System
