Brand Name : Supmeter
Model Number : BST106-B66(D)
Certification : CE
Place of Origin : China
MOQ : 1pcs
Price : Negotiation
Payment Terms : T/T, Western Union
Supply Ability : 1000pcs per month
Delivery Time : 3-30 days
Packaging Details : 1pcs/box
Power Supply : DC24V
DI : 6
DO : 8
AO : 1
COM1 : RS232
COM2 : RS485
DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale
Main Features:


Model Panel-mounting Operation Interface
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.
| Menu Operation | |
| Key Name | Description |
| 【MENU】 | Enter Main Menu. |
| 【ENT】 | Enter / Save / Alarm Acknowledge. |
| 【◄】 | Cursor shifts left. |
| 【►】 | Cursor shifts left. |
| 【▲】 | Display the next interface or option. |
| 【▼】 | Display the previous interface or option. |
| Quick Operation | |
【MENU】 |
|
【◄】 | Recipe parameters setting. |
【◄】 |
|
【▲】 |
|
【MENU】 | Gross Weight / Net Weight display switch. |


Technical Specifications
|
|

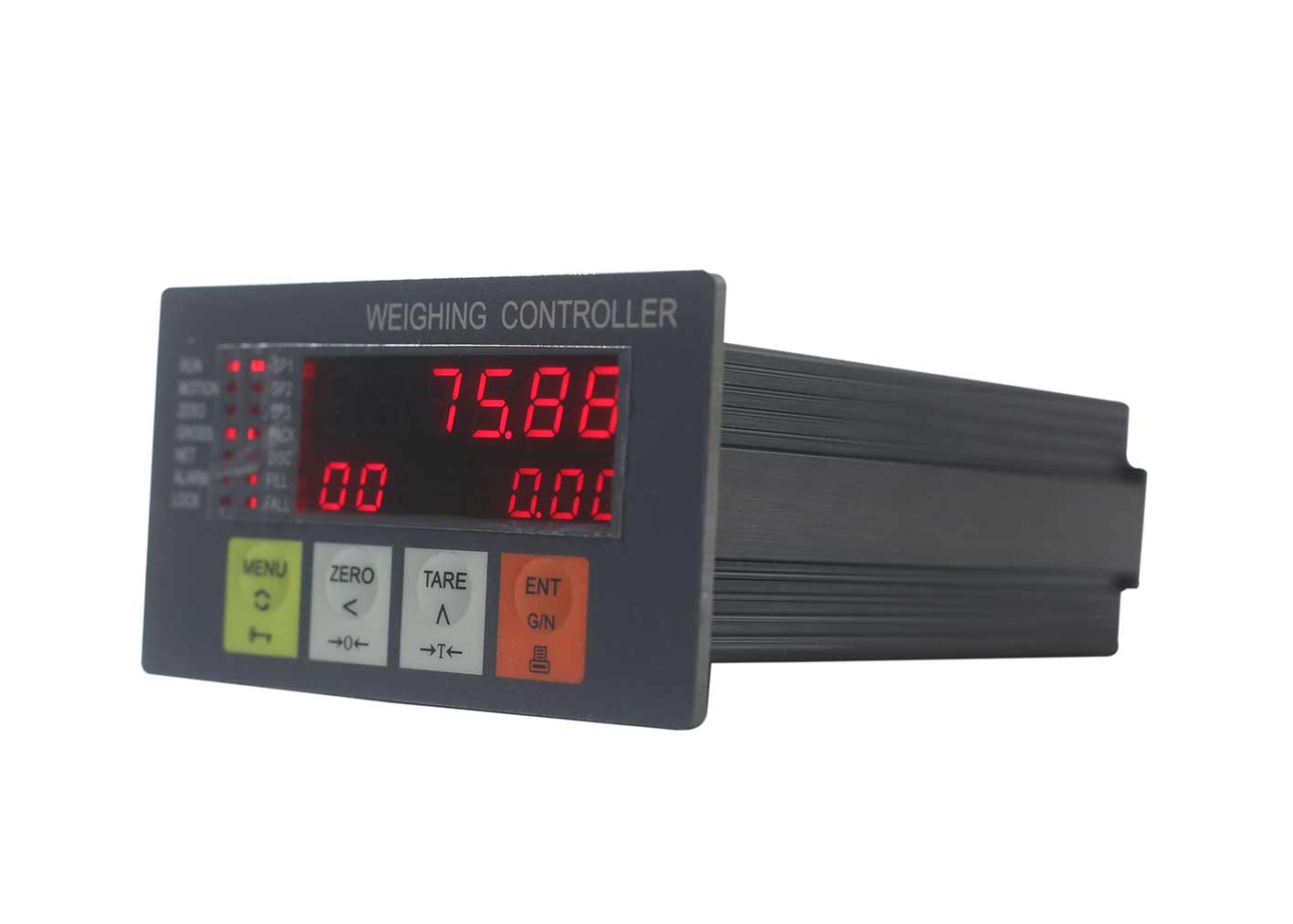

DC24V Led Display Controller With AO4-20Ma, Weighing Indicator With RS232 And DO DI For Ration Packing Scale Images |
